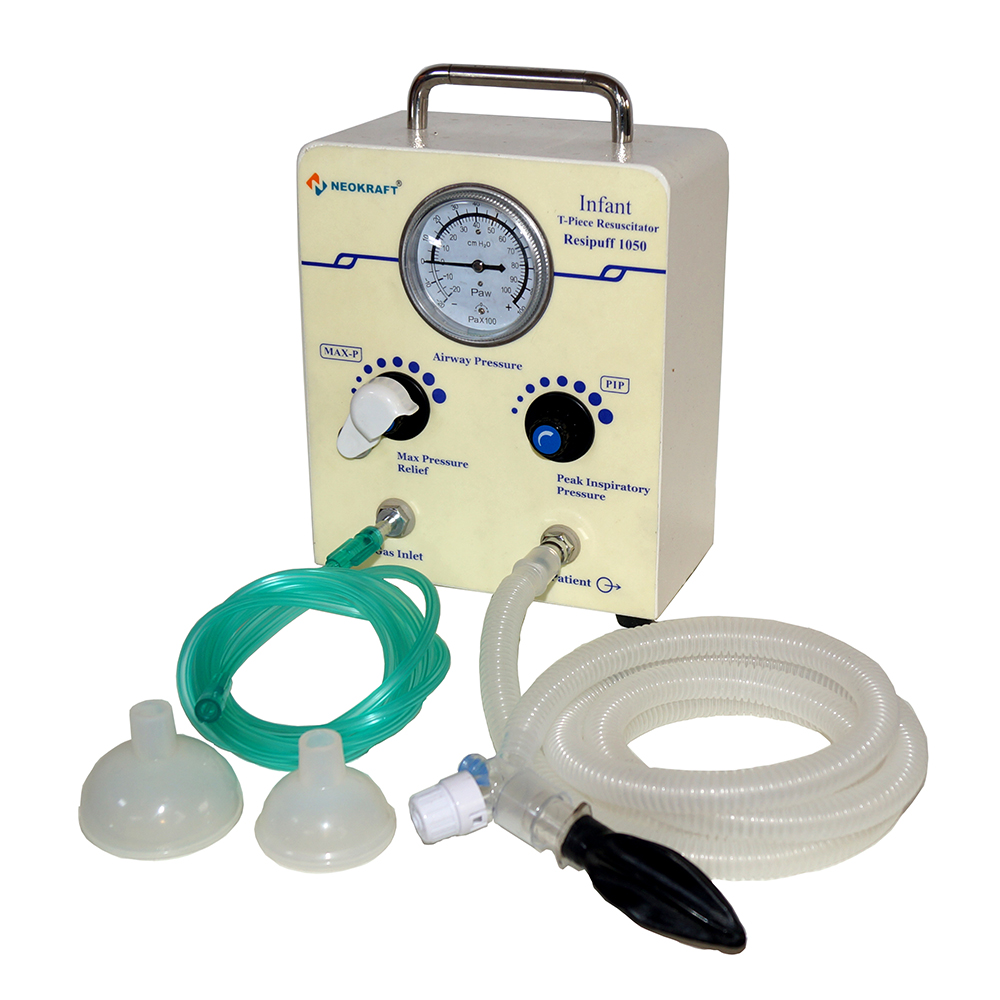

Infant T-Piece Resuscitator
A lightweight, easy-to-use Infant T-Piece Resuscitator delivering consistent PIP and PEEP for safe and effective neonatal ventilation. Ideal for delivery rooms, NICUs, operating rooms, and transport applications. No battery. No power. Just dependable performance when every breath matters.
Diascription
Neokraft make Infant T-Piece Resuscitator is a lightweight standalone unit suitable for delivery wards, Neonatal care units, Operating rooms, and Infant transport resuscitation purpose. With T-Piece resuscitator safely inflate the Baby’s lungs and provide optimum oxygenation by delivering consistent PIP & PEEP with each breath avoiding the risks associated with under or over inflation of uncontrolled pressures. T-Piece Resuscitator can connect to Neonatal masks or endotracheal tubes directly, to operate no battery or power is required.
MAX PRESSURE: – MAX Pressure relief valve to set maximum cut-off pressure where pressure will never deliver beyond set value.
PIP: – Peak Inspiratory Pressure, PIP setting ranges from 5-75cm H20 [mbar]
| Input flow 5 LPM | Approx | 5-70cm H20 |
| Input flow 8 LPM | Approx | 6-75cm H20 |
| Input flow 10 LPM | Approx | 8-75cm H20 |
| Input flow 15 LPM | Approx | 10-75cm H20 |
PEEP: – Positive End Expiratory Pressure, PEEP Setting range from 2-25cm H20 [mbar]
| Input flow 5 LPM | Approx | 2-5cm H20 |
| Input flow 8 LPM | Approx | 4-8cm H20 |
| Input flow 10 LPM | Approx | 4-10cm H20 |
| Input flow 15 LPM | Approx | 6-20cm H20 |
Display: – Medical grade needle type monometer to monitor PIP & PEEP of each breath delivered
| Monometer Display | -20 to 100cm H20 |
| Monometer Accuracy | +/-2.0% |
| Maximum Pressure setting | 40-80cm H2O |
| Factory Default Setting | 40cm H2O Flow @ 6 LPM |
*Accessories shown in the image may not be part of the standard equipment
